PACCAR FR engine

The 4.5 litre PACCAR FR engine with a power rating of 152 kW/207 hp forms the heart of the LF 12t. The FR-engine complies with the Euro 5 thanks to the high-pressure common rail injection system and SCR technology.

The use of more efficient and low-maintenance components in combination with optimised cooling and combustion allows service intervals to be increased to 48,000 km for distribution applications and 60,000 km for the long haul, thus reducing operating cost and increasing uptime. The standard exhaust brake offers increased braking performance and is actuated by a steering wheel switch.

Type	Performance	Torque
FR152	152 kW / 207 hp / 2,100-2,300 rpm	760 at 1,400 - 1,800 rpm

PACCAR GR engine

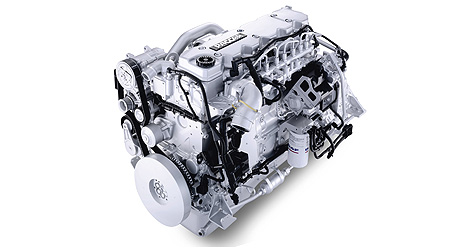

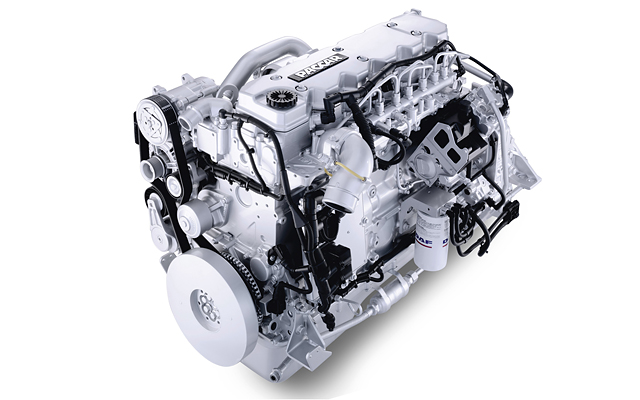

The 6.7 litre PACCAR GR engine has outputs of 184 kW/250 hp and 210 kW/286 hp form the heart of the LF 14-19t. The GR-engine complies with the Euro 5 thanks to the high-pressure common rail injection system and SCR technology.

The use of more efficient and low-maintenance components in combination with optimised cooling and combustion allows service intervals to be increased to 48,000 km for distribution applications and 60,000 km for the long haul, thus reducing operating cost and increasing uptime. The standard exhaust brake offers increased braking performance and is actuated by a steering wheel switch.

Type	Performance	Torque
GR184	184 kW / 250 hp / 1,900-2,500 rpm	950 Nm / 1,200-1,700 rpm
GR210	210 kW / 286 hp / 2,100-2,500 rpm	1,020 Nm / 1,200-1,800 rpm

Transmissions

The PACCAR FR and GR engines of the LF have a manual six speed gearbox as standard. A nine-speed manual transmission is available for the most powerful engines with higher torque. The engines can also be combined with a six-speed AS Tronic gearbox. Also the wide variety of PTO’s contribute to the versatility of the DAF LF.

SCR Technology

DAF SCR Technology for a bright future - The clean route

DAF uses SCR technology – Selective Catalytic Reduction. This SCR technology offers the best solution to comply with the European Euro 5 emission requirements. SCR technology is simple, reliable and efficient.
